Cassandra 2.1 Counters: Testing Consistency During Nodes Failures

For some cases such as adserving counters are really handy to accumulate totals for events coming into a system compared to batch aggregates. While distributed counters consistency is a well-known problem Cassandra counters in version 2.1 are claimed to be more accurate compared to the prior ones. This post describes the approach and the results of Cassandra counters consistency testing in different failure scenarios such as rolling restarts, nodes abnormal termination and network splits.

Here's the initial blog post by DataStax describing the internals of new Cassandra counters implementation. There exists a really good counters consistency tests during network splits performed by Jepsen and published in Aphyr's blog. While there are a wide variety of stress test tools, with counters it would be nice to verify their behavior for business-specific case, emulating production workload. For this purpose a simple Akka-based application has been implemented allowing to produce high write rate while using the problem domain data model.

The Tool

The main idea behind the tool is in providing highly concurrent writes with respect to the data model (which reflects particular business case) and simple feedback loop to verify the results. The feedback loop is implemented with configurable number of retries to wait for eventually consistent writes being propagated to all nodes.

Actor System Overview

Actors responsibilities and relationships
  • Coordinator controls interactions between the rest of the actors, waits for initialization, executes broadcast load start command etc. when all writes are sent to the cluster, Coordinator executes feedback loop to compare actual counter values with expected result
  • Generators are domain-aware random insert queries generators which take into account amount of unique rows and counters per row to generate full path to counters. Total amount of counters thus equals number of unique rows times number of counters per row
  • Processors are Actors controlling execution for specific table and sub sum of total counter value. Total number of processors equal number_of_entities * parallelism_factor. Each processor is responsible for providing writes for totalSum/parallelism subtotal of target total value for each counter. Number of processors affects the amount of concurrent writes to the same counters.
  • Workers are needed for generating increments and coordinating writes to generated keys. Each worker holds a subset of Processor's keys for specific table thus providing faster iterations over smaller insert batches. Number of writers influence the parallelism of writes to different keys providing intermixed writes with other workers. But generally it is a performance optimization for processing smaller amount of keys per write
  • CassandraWriter is a short-living actor which dies after all work is done. These actors live on dedicated dispatcher with separate thread pool due to datastax-java-driver specifics: it becomes enormously slow on shared thread pool for some reasons.
Data model

Replication factor of 3 will be used in tests against 5-node C* cluster:

CREATE KEYSPACE IF NOT EXISTS $keyspaceName WITH replication= {'class':'SimpleStrategy', 'replication_factor':3};

During the tests the data will be written independently representing 3 different entities (e.g. views, clicks and campaigns). Each of this entities looks as follows:

CREATE TABLE IF NOT EXISTS $keyspaceName.$name (
           id uuid,
           u ascii,
           e ascii,
           d int,
           c counter,
           PRIMARY KEY((id, u, e), d));

But for one of the entities two column families will be created to reflect the case with different read paths (same fields, different row keys).

The Setup

Cassandra cluster configuration

Tests are performed against 5 node Cassandra 2.1.9 cluster. Each node has 32Gb of RAM and 4-core 8-threads 3.70GHz Xeon CPU.

Cassandra heap size: 8Gb

Test configuration

Here's an example of tool invocation:

java -jar counters-test.jar -h 10.120.0.252 -k test_keyspace -p 10 -w 100 -s 50 -r 1000 -c 100

Details:

  • counter total value 50
  • parallelism 10
  • 100 workers, keys per worker 1000 (sequentially fed to async writes)
  • 1000 rows
  • 100 counters per row

Tool is configured to write +1 increments which results in 5M of total writes to every table (views, clicks, 2x campaign). Write throughput after warmup fluctuates around 30K writes/sec. Generally

Network partitions and rolling restarts are implemented with Siafu: fabric-based python tool

Cassandra client configuration

Client configured with:

implicit val cluster = Cluster.builder()
      .addContactPoint(config.clusterNode)
      .withQueryOptions(new QueryOptions()
         .setConsistencyLevel(ConsistencyLevel.QUORUM)
      ).build()

All writes are executed in sync mode, i.e.:

Try(msg.session.execute(statement)) match {
  case Failure(ex) => log.error(ex, "ERROR DURING WRITE")
  case _ =>
}

The Test

Scenarios Overview and Results Interpretation

The counters consistency is going to be evaluated in next scenarios while writes are executed against the cluster:

  • node normally stops
  • node normally restarts
  • cluster rolling restart
  • node dies (kill -9)
  • node dies, starts again and nodetool repair is executed
  • node is lost due to network split and then comes back
Results interpretation

Results for each entity contain next set of fields:

  • overcounts - total amount of counters holding value greater than expected
  • maxOverCount - maximum overcount value for single counter
  • totalOverCount - total amount of queries with overcount
  • undercounts - total amount of counters holding value less than expected
  • maxUnderCount - maximum udercount value for single counter
  • totalUnderCount - total amount of queries with undercount
Load stats

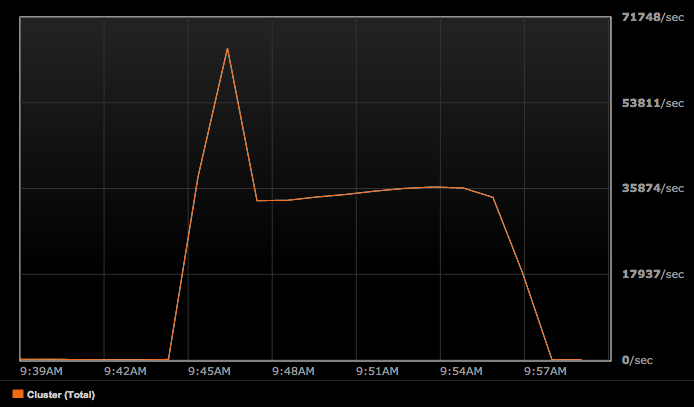

Here's an example of throughput stats for the test being executed without incidents:
The spike in the beginning is due to several minites warmup done before actual writes.

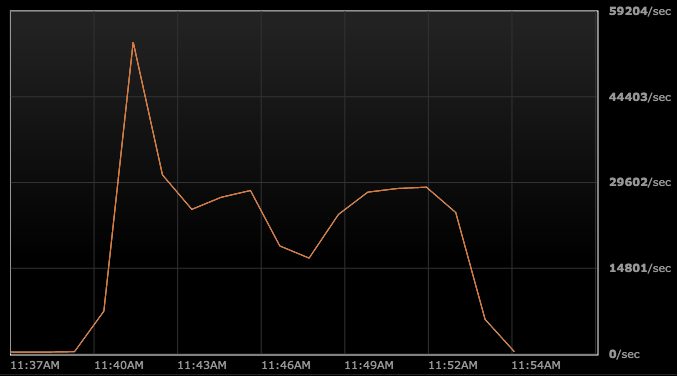

And here's an example of throughput deviation while node fails and gets back:

One really important thing during interpretation of the test results is that the test is pretty synthetic and the amount of failed under- or overcounts will vary depending on the throughput and amount of failures per test. But for the initial evaluation of C* counters behavior in the most common failure scenarios this should be enough to grasp the whole picture.

The Results

Scenario: node normally stops
DEVIATION STATS:
overcounts: 4
maxOverCount: 1
totalOverCount: 4
undercounts: 0
maxUnderCount: 0
totalUnderCount: 0


DEVIATION STATS:
overcounts: 1
maxOverCount: 1
totalOverCount: 1
undercounts: 0
maxUnderCount: 0
totalUnderCount: 0

DEVIATION STATS:
overcounts: 2
maxOverCount: 1
totalOverCount: 2
undercounts: 0
maxUnderCount: 0
totalUnderCount: 0
Scenario: node normally restarts
DEVIATION STATS:
overcounts: 4
maxOverCount: 1
totalOverCount: 4
undercounts: 11
maxUnderCount: 1
totalUnderCount: 11

DEVIATION STATS:
overcounts: 1
maxOverCount: 1
totalOverCount: 1
undercounts: 2
maxUnderCount: 1
totalUnderCount: 2

DEVIATION STATS:
overcounts: 1
maxOverCount: 1
totalOverCount: 1
undercounts: 6
maxUnderCount: 1
totalUnderCount: 6
Scenario: cluster rolling restart
DEVIATION STATS:
overcounts: 8
maxOverCount: 1
totalOverCount: 8
undercounts: 22
maxUnderCount: 1
totalUnderCount: 22

DEVIATION STATS:
overcounts: 15
maxOverCount: 1
totalOverCount: 15
undercounts: 20
maxUnderCount: 1
totalUnderCount: 20

DEVIATION STATS:
overcounts: 21
maxOverCount: 2
totalOverCount: 22
undercounts: 30
maxUnderCount: 1
totalUnderCount: 30
Normal termination operations conclusion

During normal operations like service stops, restarts and cluster rolling restarts the amount of failed counters is not exceeded 0.000007% which is pretty acceptable deviation for most of the cases. The results may vary depending on load/throughput but the fact is that even during normal cluster operations some undercounts (and what's even worse overcounts) are registered.

Scenario: node dies (kill -9)
DEVIATION STATS:
overcounts: 0
maxOverCount: 0
totalOverCount: 0
undercounts: 16
maxUnderCount: 1
totalUnderCount: 16

DEVIATION STATS:
overcounts: 1
maxOverCount: 1
totalOverCount: 1
undercounts: 50
maxUnderCount: 2
totalUnderCount: 52

DEVIATION STATS:
overcounts: 0
maxOverCount: 0
totalOverCount: 0
undercounts: 28
maxUnderCount: 1
totalUnderCount: 28
Scenario: network partition
DEVIATION STATS:
overcounts: 0
maxOverCount: 0
totalOverCount: 0
undercounts: 13
maxUnderCount: 1
totalUnderCount: 13

DEVIATION STATS:
overcounts: 0
maxOverCount: 0
totalOverCount: 0
undercounts: 55
maxUnderCount: 1
totalUnderCount: 55

DEVIATION STATS:
overcounts: 0
maxOverCount: 0
totalOverCount: 0
undercounts: 57
maxUnderCount: 1
totalUnderCount: 57
Scenario: 2 new nodes are added to 5-node cluster while writing

No over- or under-counts registered

Scenario: node dies, starts again and nodetool repair is executed
DEVIATION STATS:
overcounts: 1
maxOverCount: 1
totalOverCount: 1
undercounts: 7019
maxUnderCount: 4
totalUnderCount: 8607

DEVIATION STATS:
overcounts: 0
maxOverCount: 0
totalOverCount: 0
undercounts: 4146
maxUnderCount: 4
totalUnderCount: 5264

DEVIATION STATS:
overcounts: 1
maxOverCount: 1
totalOverCount: 1
undercounts: 4588
maxUnderCount: 4
totalUnderCount: 6027
Abnormal termination observations

All cases except abnormal termination with consequent restart (with or without repair) went pretty same to normal termitaion while node coming back to the cluster after failure has shown major undercounts.

The interesting part here is that with consistency level configured to QUORUM there's a repeatable exception appearing in the logs: Cassandra timeout during write query at consistency ONE (1 replica were required but only 0 acknowledged the write)

2015-08-31 15:02:07,336 ERROR [akka://counter-consistency/user/$b/$m/$S/$b] - ERROR DURING WRITE
com.datastax.driver.core.exceptions.WriteTimeoutException: Cassandra timeout during write query at consistency ONE (1 replica were required but only 0 acknowledged the write)
        at com.datastax.driver.core.exceptions.WriteTimeoutException.copy(WriteTimeoutException.java:54) ~[cassandra-tools.jar:1.0]
        at com.datastax.driver.core.DefaultResultSetFuture.extractCauseFromExecutionException(DefaultResultSetFuture.java:269) ~[cassandra-tools.jar:1.0]
        at com.datastax.driver.core.DefaultResultSetFuture.getUninterruptibly(DefaultResultSetFuture.java:183) ~[cassandra-tools.jar:1.0]
        at com.datastax.driver.core.AbstractSession.execute(AbstractSession.java:52) ~[cassandra-tools.jar:1.0]
        ...

It looks like it relates to [CASSANDRA-10041]: "timeout during write query at consistency ONE" when updating counter at consistency QUORUM and 2 of 3 nodes alive Jira issue which was unresolved at the moment of performing tests.

In node death-then-restart scenario observed behavior is that one can't just restart failed node. It's a bit weird, because this situation could happen and it looks cumbersome to rebootstrap the node wiping out all the data. But it looks like a reasonable tradeoff for the given counter functionality. Next test scenario checks rebootstrapping approach.

Scenario: node killed, then rebootstrapped

Actions performed:

  • one of the nodes is killed (kill -9)
  • dead node removed nodetool removenode <node uid>
  • data dirs wiped out on failed node machine
  • JVM_OPTS="$JVM_OPTS -Dcassandra.replace_address=<node self address> added to cassandra-env.sh on the dead node
  • node started

The results:

DEVIATION STATS:
overcounts: 2
maxOverCount: 1
totalOverCount: 2
undercounts: 69
maxUnderCount: 2
totalUnderCount: 70

DEVIATION STATS:
overcounts: 1
maxOverCount: 1
totalOverCount: 1
undercounts: 50
maxUnderCount: 1
totalUnderCount: 50

DEVIATION STATS:
overcounts: 0
maxOverCount: 0
totalOverCount: 0
undercounts: 0
maxUnderCount: 0
totalUnderCount: 0

After the total wipe out of commitlog and data directories deviations are of the same magnitude as in the other scenarios.

Conclusion

The results are pretty clear: Cassandra 2.1 counters are not totally consistent. But. The deviation and amount of undercounts is really small in total amount of writes per test(5M) while amount of overcounts is even smaller (not exceeding 10 per test). One thing to mention here again is that results randomly vary depending on which node to restart due to row key distribution across the nodes and write throughput. One still can't use the counters in banking but the amount of failed counters is quite acceptable in other cases where strict accuracy is not mandatory requirement(e.g. adserving). Combined with some sort of aggregates as a part of Lambda Architecture Cassandra counters can be used without big risks. But there are still two open questions after the tests:

  • why in case of normal operations like stop/restart some counters are inconsistent? This basically means that in case of any Cassandra operation which needs service restart it will lose some increments
  • why one can't simply restart failed node without major undercounts? Counters operations are completely different from the regular ones in Cassandra and nodetool repair simply doesn't work as expected.
